Bypass Cyclone Dust Collector

    Bypass cyclone dust collectors are classified into suction type (Model X) and forced draft type (Model Y) based on the fan position. Model X is equipped with an outlet volute on the collector body. They are further divided into left rotation type (Model N) and right rotation type (Model S) according to the rotating direction of the volute.

    This type of dust collector features a spiral bypass separation chamber with a low inlet. Sufficient space at the top forms an upward swirling vortex and dust ring, which is guided to the cone section via the bypass separation chamber to enhance dust removal efficiency. The spiral design of the chamber enables tangential entry of dusty gas into the cone and prevents dust re-entrainment.

    There are two categories of bypass cyclone dust collectors: semi-spiral XLP/A type and full-spiral XLP/B type.

     Seven specifications are available by diameter: Φ300mm, Φ420mm, Φ540mm, Φ700mm, Φ820mm, Φ940mm and Φ1060mm.

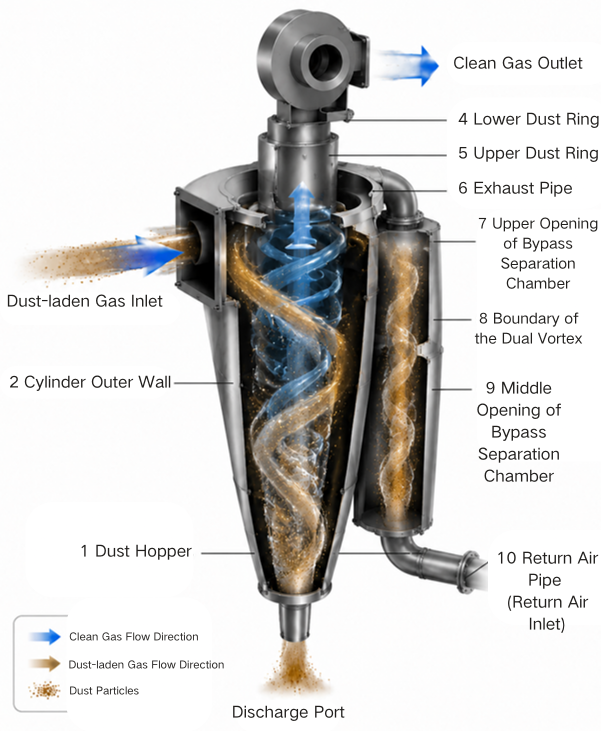

1 dust hopper edited
The figure above shows the schematic diagram of XLP type dust collector
Inlet Velocity / (m/s) Dust Removal Efficiency %
XLP/A Type XLP/B Type
8 90.8 89.2
9 91.7 90.1
10 92.5 90.9
11 93.2 91.7
12 93.8 92.3
13 94.3 92.8
14 94.7 93.2
15 95.0 93.6
16 95.2 93.8
17 95.3 94.1
18 95.4 94.3
19 95.5 94.4

XLP/A type cyclone dust collector

    Bypass cyclone dust collectors are categorized into suction type X and forced draft type Y. The X type is fitted with an outlet volute on the collector body. It is further classified into left rotary type N and right rotary type S by the volute rotation direction.

    This equipment is modified from conventional cyclone dust collectors with an additional bypass separation chamber. The XLP/A type adopts a double-cone structure. The upper cone has a large cone angle, facilitating dust ring formation, reducing radial velocity and equipment resistance, and avoiding dust discharge along with purified air.
微信图片 20260522162846 22 1
微信图片 20260522162846 23 1
The product parameters of XLP/A type cyclone dust collector are as follows：
Model Specification Air Handling Capacity (m³/h) Resistance (kg/m²) Efficiency (%) External Dimensions (L×W×H) Weight (kg)
X Y X Y X Y
XLP/A~3.0 750~1060 45~90 39~79 85~99 406×390×6125 460×390×1380 57 43
XLP/A~4.2 1460~2060 556×545×2177 556×545×1880 99 80
XLP/A~5.2 2280~3230 711×700×2701 711×700×2701 165 128
XLP/A~7.0 4020~5700 911×910×3489 911×910×3040 265 213
XLP/A~8.2 5500~7790 1071×1605×4050 1071×1605×3540 364 293
XLP/A~9.4 7520~10650 1226×1222×4616 1226×1222×4050 473 384
XLP/A~10.6 9520~13500 1376×1337×5157 1376×1337×4545 631 483

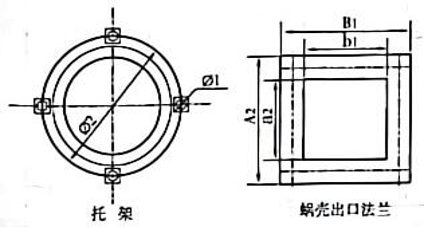

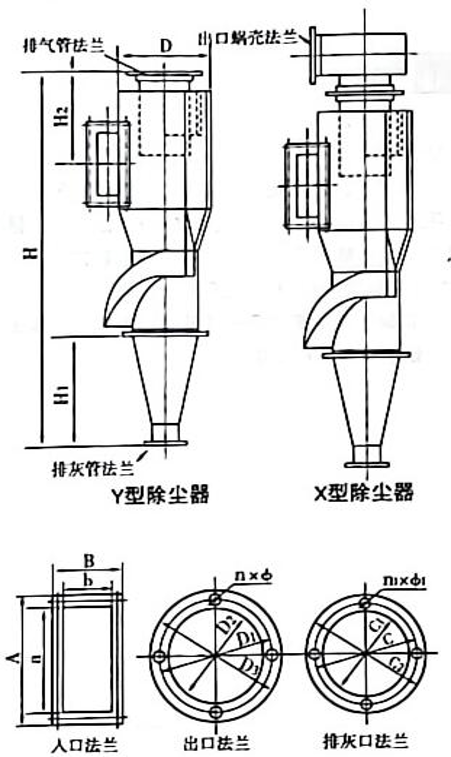

Size H H₁ H₂ D A B a b D₁ D₂ D₃ n Φ C C₁ C₂ n₁ Φ₁ Φ₂ Φ₃ A₁ B₁ a₁ b₁ h
3.0 1380 420 340 300 292 132 242 82 210 182 232 6 11 146 116 176 6 11 270 14 202 187 152 137 246
4.2 1886 590 445 420 382 162 332 112 280 252 302 8 11 146 116 176 6 11 360 14 242 237 202 187 291
5.2 2350 750 540 540 462 202 402 142 356 322 382 8 11 146 116 176 6 11 440 14 312 297 252 237 351
7.0 3040 980 690 700 602 242 542 182 456 422 482 12 11 146 116 176 6 11 580 18 412 367 352 307 451
8.2 3540 1150 795 820 712 292 632 212 536 492 572 12 13 197 167 227 6 11 660 18 472 437 402 357 506
9.2 4055 1320 907.5 940 817 327 737 247 606 562 642 16 13 197 167 227 6 11 740 18 532 487 452 407 561
10.6 4545 1480 1012.5 1060 907 357 827 277 676 632 712 16 13 197 167 227 6 11 830 18 582 537 502 457 611
x
XLP/B-X type

XLP/B type cyclone dust collector

    The XLP/B type features a single cone structure with a small cone angle. Its elongated cone boosts dust removal efficiency yet brings higher pressure loss.

    This dust collector is mainly used to remove non-adhesive dust, coal dust, sediment, smoke and other particulate pollutants.
y
XLP/B-Y type
Technical Performance Table
Model Specification Inlet Velocity (m³/s) Air Handling Capacity (m³/h) Resistance (kg/m²) Efficiency (%) External Dimensions (L×W×H) Weight (kg)
X Y X Y
XLP/B~3.0 12~27 650~1050 30~90 27~75 85~99 438×381×1606 439×381×1360 66
XLP/B~4.2 1280~2138 603×534×2172 630×534×1375 108
XLP/B~5.4 2090~3480 772×685×2764 772×685×2395 170
XLP/B~7.0 3650~6080 994×889×3529 994×889×3089 283
XLP/B~8.2 5030~8380 1167×1040×4110 1176×1040×3600 374
XLP/B~9.4 6550~10620 1332×1094×4671 1332×1194×4110 477
XLP/B~10.6 8370~13980 1495×1345×5232 1495×1345×4621 578
Technical Performance Table
Model / Size H H₁ H₂ D A B a b D₁ D₂ D₃ n Φ C C₁ C₂ n₁ Φ₁ Φ₂ Φ₃
XL/P/B ~ 3.0 1360 780 245 300 232 142 182 92 210 182 232 6 11 146 116 176 6 11 360 14
XL/P/B ~ 4.2 1875 1090 310 420 302 177 252 127 280 252 302 8 11 146 116 176 6 11 480 14
XL/P/B ~ 5.4 2395 1405 380 540 382 327 322 162 356 322 382 8 11 146 116 176 6 11 900 14
XL/P/B ~ 7.0 3080 1820 475 700 482 222 422 212 456 422 482 12 11 146 116 176 6 11 780 18
XL/P/B ~ 8.2 3600 2130 545 820 572 272 492 247 536 492 572 12 13 197 167 227 6 11 600 18
XL/P/B ~ 9.4 4110 2440 615 940 642 362 562 282 606 562 642 16 13 197 167 227 6 11 1020 18
XL/P/B ~ 10.6 4620 2750 685 1060 712 367 632 317 676 632 712 16 13 197 167 227 6 11 1140 18
