Diffusion Cyclone Dust Collector

XLK-type diffusion cyclone dust collector

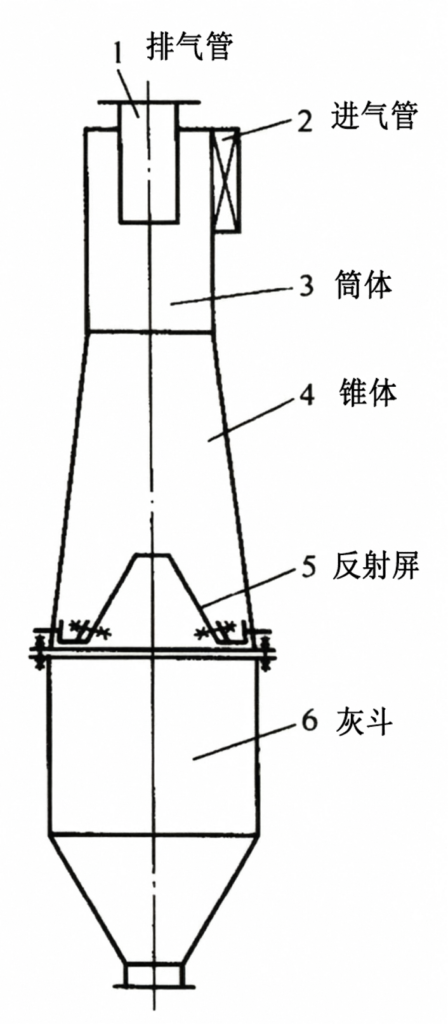

XLK-type diffusion cyclone dust collector features an inverted conical cylinder that tapers upward, minimizing the risk of dust-laden gas short-circuiting from the cylinder center to the exhaust outlet. Equipped with a deflector at the bottom, it prevents the separated dust from being re-entrained by the secondary airflow and carried out by the rising gas stream. With moderate dust removal efficiency and pressure loss, it is suitable for collecting dry, non-fibrous particulate dust.

It is widely used in industries such as metallurgy, foundry, building materials, chemical engineering, food processing, and cement production for collecting dry, non-fibrous particulate dust and smoke, and can also serve as material recovery equipment.

2
1
Model Specification Inlet Velocity (m/s) Air Handling Capacity (m³/h) Resistance (kg/m²) Efficiency (%) External Dimensions (Diameter × Height) mm Weight (kg)
CLK-Φ150 10~20 210-420 100 95 380×1210 33
CLK-Φ200 370-735 466×1916 52
CLK-Φ250 595-1190 566×2039 75
CLK-Φ300 840-1680 631×2447 103
CLK-Φ350 1130-2270 716×2866 143
CLK-Φ400 1500-3000 808×3277 225
CLK-Φ450 1900-3800 893×3695 279
CLK-Φ500 2320-4650 983×4106 347
CLK-Φ600 3370-6750 1150×4934 612
CLK-Φ700 4600-9200 1325×5176 819

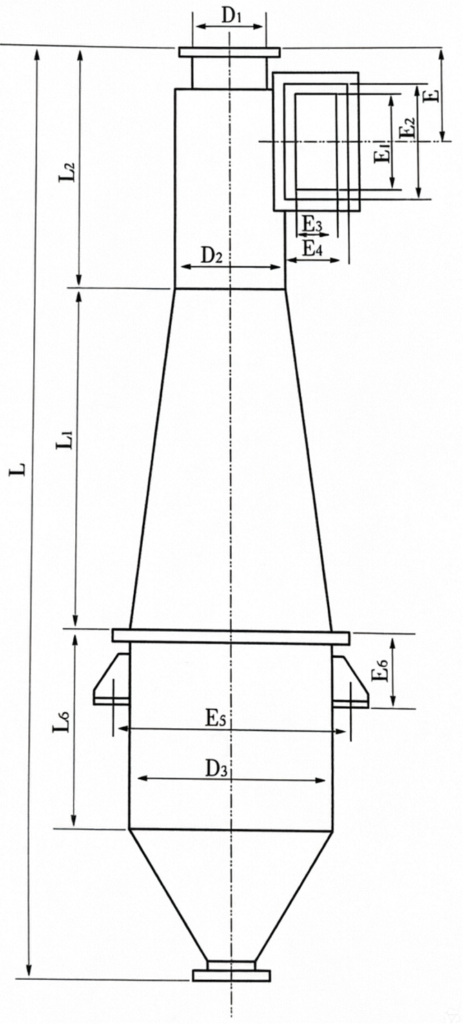

Size Specification L L₁ L₂ L₆ D₁ D₂ D₃ E E₁ E₂ E₃ E₄ E₅ E₆
150 1210 450 300 250 75 150 250 108 150 184 39 77 346 180
200 1619 600 400 330 100 200 330 143 200 235 51 90 426 180
250 2039 750 500 415 125 250 415 178 250 285 66 104 511 180
300 2447 900 600 495 150 300 495 213 300 336 78 116 591 180
350 2866 1050 700 580 175 350 580 548 350 387 90 158 676 180
400 3277 1200 800 660 200 400 662 284 400 460 105 165 768 200
450 3695 1300 900 745 225 450 747 319 450 510 117 177 853 200
500 4106 1500 1000 825 250 500 827 354 500 560 129 188 943 220
600 4934 1800 1200 990 300 600 992 425 600 657 156 216 1110 220
700 5716 2100 1400 1155 350 700 1157 495 700 756 183 243 1285 240
