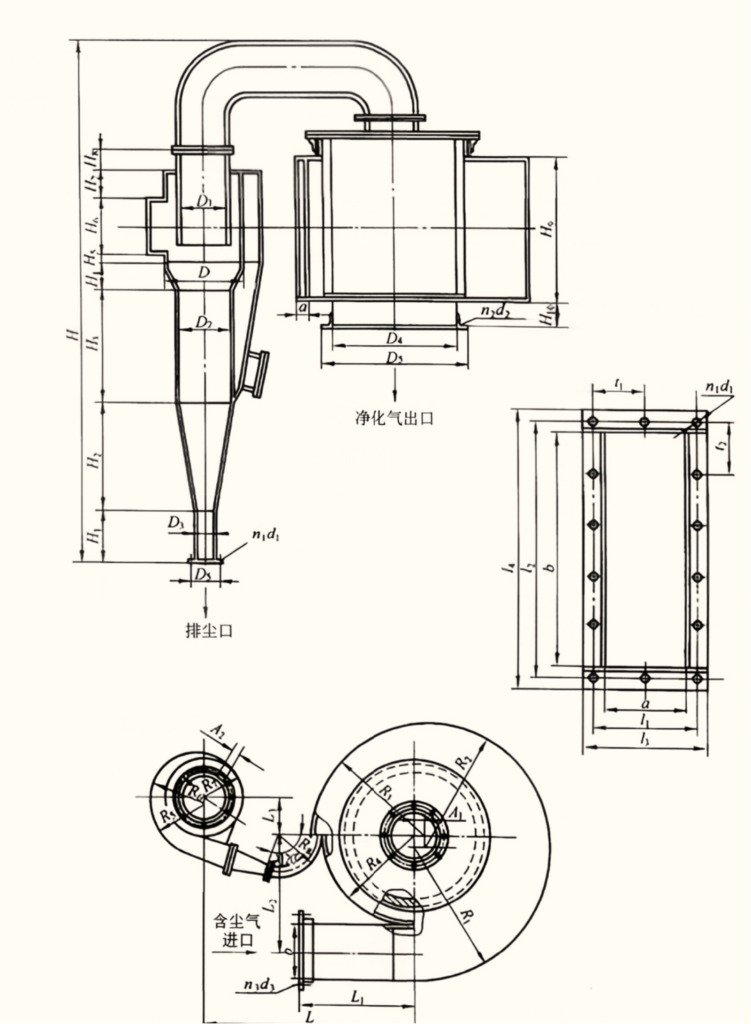

CR205 Two-Stage Volute Cyclone Dust Collector

    Two-stage volute cyclone dust collector combines inertial dust collector and bypass cyclone dust collector. It features high dust removal efficiency and moderate pressure loss with compact structure. It is applicable to flue gas containing dust particles ranging from 20 to 100 microns, ideal for dust treatment of boiler flue gas with abundant coarse particles. The equipment consists of volute, fixed blades and bypass cyclone dust collector.

    To achieve concentrated dust separation inside the volute and avoid dust deposition, this collector is not suitable for long-term low-load operation. Tests show optimal dedusting performance and low pressure loss are obtained when the inlet air velocity ranges from 15 to 25 m/s, with the recommended speed of 18 to 20 m/s.

screenshot 2026 05 23 160615 edited

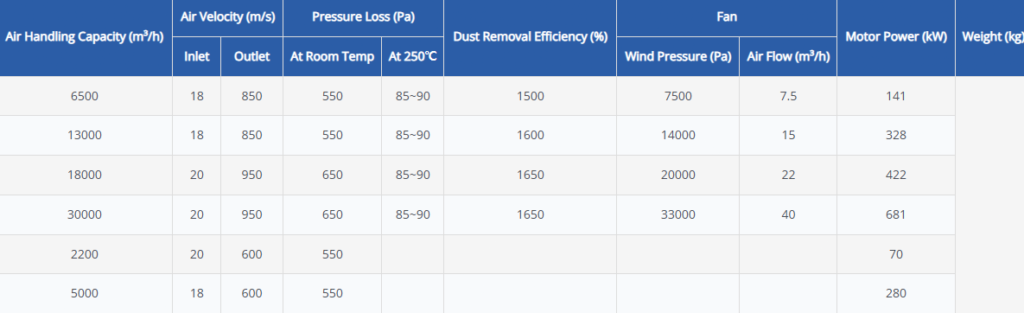

Performance of CR205 Two-stage Spiral Dust Collector
b1

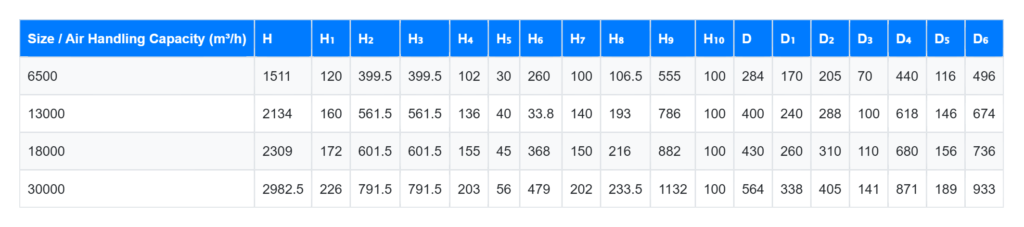

Table 1: CR205 Dual-Stage Cyclone Dust Collector Dimensions (mm)
b2

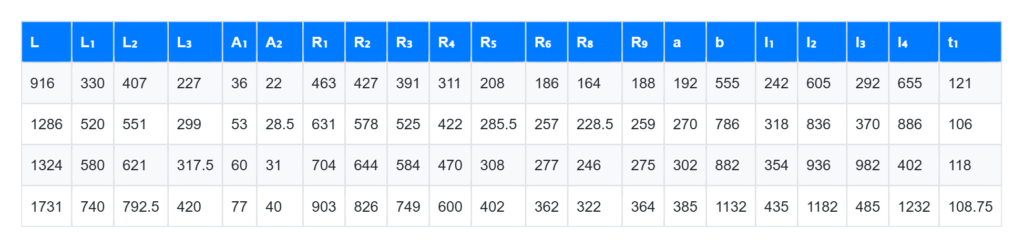

Table 2: Continued Table 1 (Dimensions)
b3

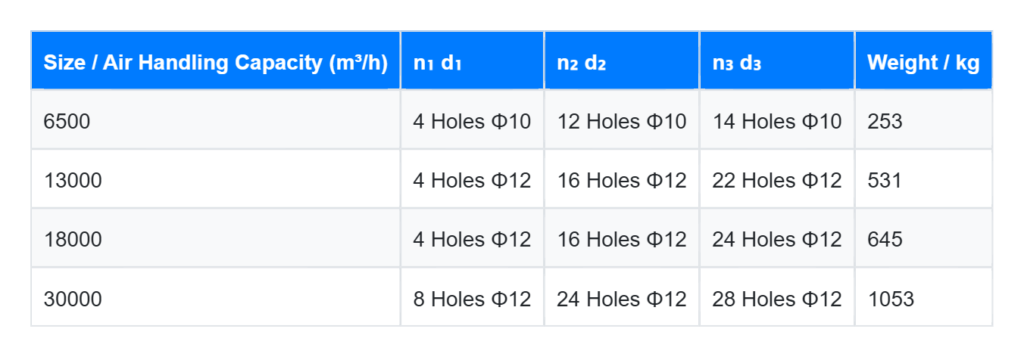

Table 3: Continued Table 1 (Holes & Weight)

XS type double cyclone dust collector

XS type double cyclone dust collector includes XS-A and XS-B models. As industrial boiler dust removal equipment, it applies to flue gas purification of stoker-fired industrial and heating boilers. It boasts high dust removal efficiency, low resistance, stable performance, large air handling capacity, easy operation, small floor space and economical material consumption.

Working principle: Dust-laden gas enters the large volute. Dust concentrates on the wall under centrifugal force, while airflow diffuses downward and thins during rotation. After rotating 270 degrees, about 15%~20% concentrated airflow with massive dust flows into the small cyclone separator.

The inner residual airflow partly enters the flat volute for further separation in the large cyclone cylinder, and partly mixes with incoming gas through gaps around the core pipe to form new rotating airflow, improving fine dust capture rate.

The two purified air streams converge with exhaust gas from the small cyclone and discharge out of the equipment. Dust is collected separately in ash hoppers under the two cyclone cylinders.


xs1

This figure shows XS1-20A cyclone dust collector

1 — Large volute 2 — Flat swirling volute 3 — Large core pipe 4 — Small cyclone cylinder 5 — Reducer pipe 6 — Inclined cone and exhaust pipe 7 — Exhaust connecting pipe

xs2

This figure shows XS0.5-4B cyclone dust collector

1 — Large cyclone shell 2 — Large core pipe 3 — Small cyclone shell 4 — Small core pipe 5 — Small cyclone cone 6 — Exhaust connecting pipe 7 — Connecting pipe 8 — Inclined cone exhaust pipe

a1

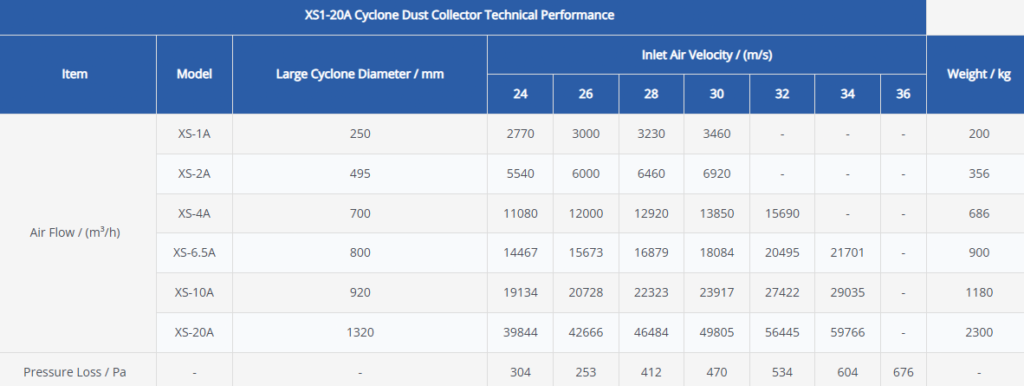

Technical Performance of XS1-20A Cyclone Dust Collector
a2

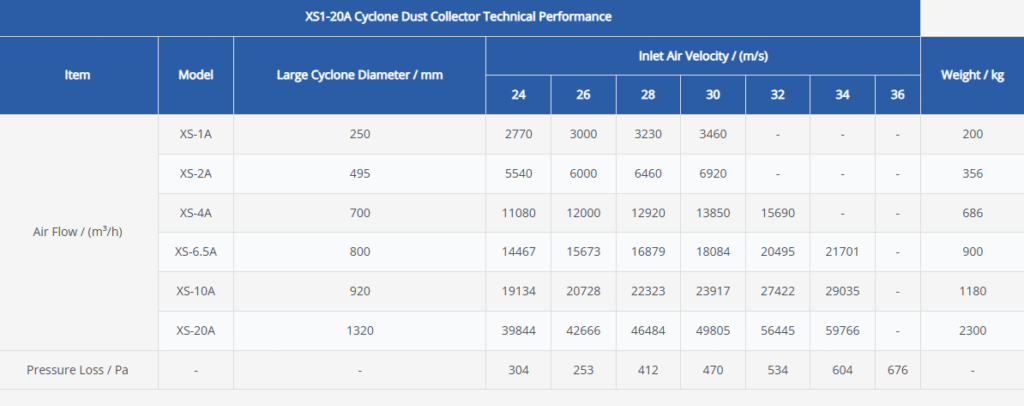

Technical Performance of XS0.5-4B Cyclone Dust Collector
XS1-20A Cyclone Dust Collector Dimensions (mm)
Model D₀ D₁ d₀ B H₀ H₁ H₂ R₁ L₀ L b₁ b Φ Φ₀ Φ₁ n-Φ₂ Φ₂ Φ₃ n-Φ₄
XS-1A 356 306 226 240 2219 1126 770 281 367 550 297 99 12 307 350 12-12 100 57 4-12
XS-2A 501 430 317 340 2960 1590 950 268 505 778 396 132 12 431 474 12-12 120 77 4-12
XS-4A 706 606 446 480 4196 2246 1400 536 702 1100 537 179 12 607 660 12-12 160 107 8-12
XS-6.5A 836 756 539 620 4757 2568 1550 636 834.5 1350 688 172 12 757 800 12-12 200 150 8-12
XS-10A 956 856 514 750 5422 2952 1750 727 954 1500 618 136 12 857 900 12-12 200 150 8-12
XS-20A 1356 1206 866 1070 7388 4232 2170 1027 1346 2150 1136 142 12 1207 1250 24-24 250 200 8-12
XS0.5-4B Cyclone Dust Collector Dimensions (mm)
Model D₀ D₁ d₀ B H H₀ H₁ H₂ R₂ L₀ L nz m×n₁ c×n₂ Φ₀ Φ₁ n-Φ₂ Φ₂ Φ₃ n-Φ₃
XS-1B 466 306 206 150 600 1998 1050 600 322 410 500 12-16 110×6 104×2 307 366 12-12 126 57 6-12
XS-2B 656 436 296 210 850 2801 1490 850 457 580 700 20-12 114×8 134×2 437 496 12-12 146 77 6-12
XS-4B 926 606 406 300 1200 3899 2100 1200 638 780 1000 26-12 126×10 126×10 607 666 12-12 176 107 8-12
XS-0.5B 331 218 147 105 425 1439 748 425 242 310 - - - - - - - - - -
XS-0.7B 417 274 185 134 537 1798 940 537 299 370 - - - - - - - - - -
